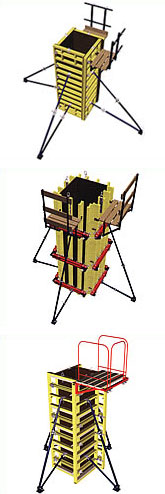

The column formwork CSFF-122 is assembled according to the windmill principle and anchored at the corners by means of tension tie rod with fine adjustment ability. CSFF-122 adjustable column form allows infinite variable adjustment to all column section from 150 mm to 700 mm in all four sides.

In general the panels are delivered without the plywood face. For a fare concrete quality the plywood can be nailed to the panel form through the timber runners supplied with the system.

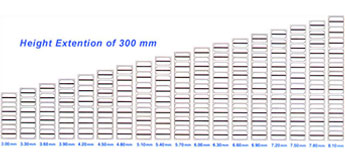

The panels can be combined on top of each other to purvey the height required. Panel connector elements are used to connect the panels together.

Panels are available in heights of 3000 mm, 2100 mm, and 600 mm.
