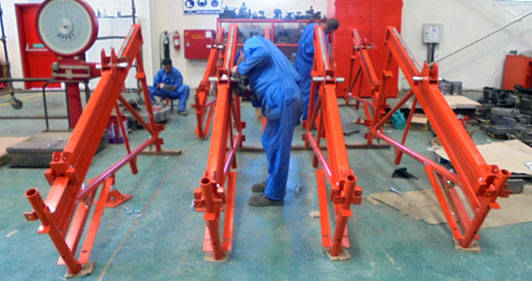

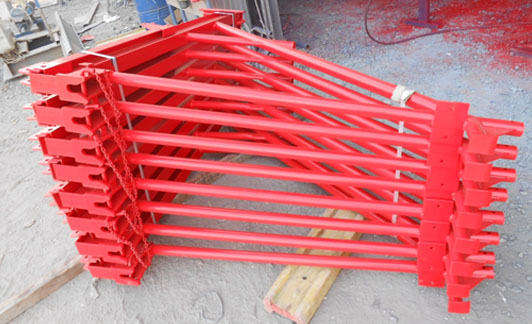

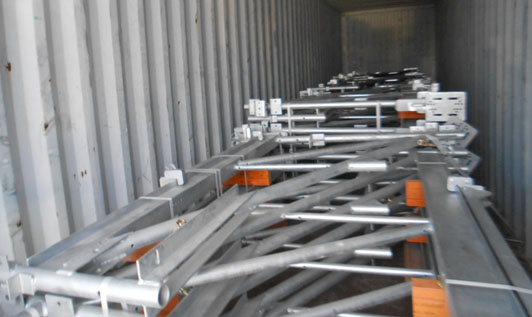

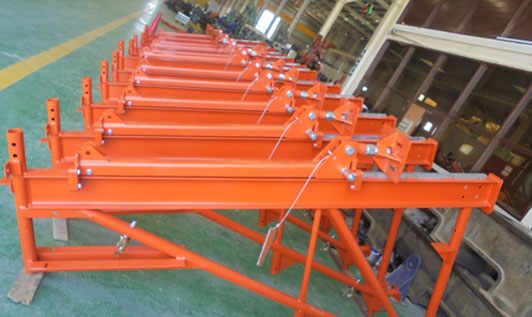

Climbing Bracket Systems
.................................................................................

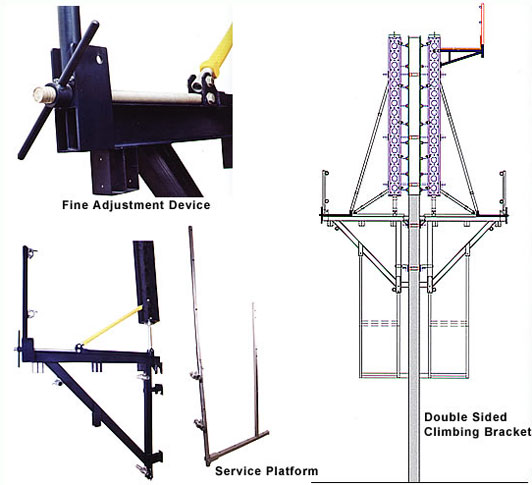

CSFF climbing brackets can be used with either modular formwork systems or purpose made forms which cover many constructional applications. Its allows fine adjustment of the form panels vertically and horizontally to ensure accurate alignment of the formwork surfaces. It is also supplied with main upper platforms and lower handling platforms. All components are lifted as one unit, which minimize crane time. The climbing bracket is not designed to resist concrete pressure. Ties should be positioned through the formwork to resist concrete pressure. The working platform is designed to support a load of 0.75 kN/m2 on the handling platform and 1.5 kN/m2 on the main platform at anchorage level. The anchorage forces allowed(combination of shear and tension) are as follows:


Allowable Tension =55 kN.
Allowable Shear =20 kN.
