CSFF Decking Systems
.................................................................................


The CSFF Decking System is designed to support a variety of bay sizes with a maximum load of 40 kN on any supporting leg . For maximum economy, the rapid strike drophead offers the facility for early striking of the decking system. When the support plate on the drophead remains in position to support the slab, the decking beam can be dismantled and reassembled elsewhere to enable greater utilization of the equipment.

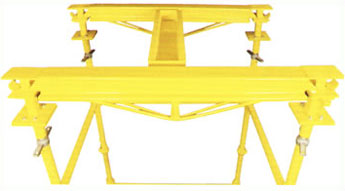

This Decking system is ideally suited for construction of reinforced concrete suspended slabs, with plywood shuttering, and incorporates the benefits of early striking. Large grid sizes of up to 2.5 x 1.8 m ensures speedy erection and different sizes of primary and secondary beams can give a range of twelve support modules. Notching of plywood over the dropheads is eliminated, and standard sizes of plywood can be used.

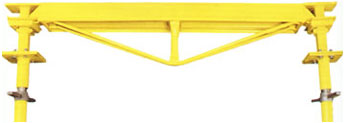

A. Decking Beam
The decking beams are designed with a very wide top flange thereby reducing maintenance costs by increasing the lifespan of the plywood. The decking beams are available in all the standard sizes, but any special sizes can be constructed for a nominal charge.


DECKING BEAM (Cuplock)

CODE

SIZE (m)

APPROX WEIGHT (kg)

CSFDB 25

2.5

25.70

CSFDB 18

1.8

19.32

CSFDB 12

1.2

13.35



  Top

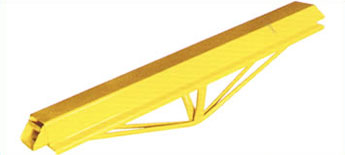

B. Infill Beam
Infill beams are used to provide the transom support underneath the plywood. All standard sizes are manufactured, as well as any special sizes upon request. They have a wide top which gives more support for the plywood.

INFILL BEAM
CODE SIZE (m) APPROX WEIGHT (kg)
CSFIB 25 2.5 8.44
CSFIB 18 1.8 6.15
CSFIB 16 1.6 5.52
CSFIB 13 1.3 4.55
CSFIB 12 1.2 4.22
CSFIB 10 1.0 3.57
CSFIB 09 0.9 3.25
CSFIB 06 0.6 2.28

CSFF System Infill Beam

C. Drop Head

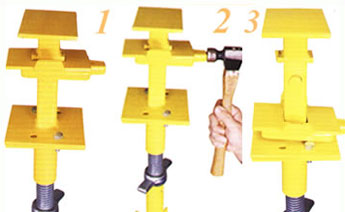

The most important part of shuttering is the drophead. Made with an extra-strong steel wedge, the dropheads allow the beams, infills and panels to be lowered at a hammers stroke. The wedge is specially constructed to endure repeated strokes of the hammer.



  Top

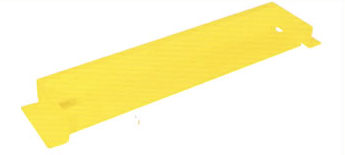

D. Socket Adapter
SOCKET ADAPTER
CODE SIZE (m) APPROX WEIGHT (kg) DIMENSIONS(kg)
CSFSA01 0.12 0.43 15 mm x 15 cm x 6 mm

E. Universal Jack
Universal jacks allow differences in height to be maintained. The base jacks like the universal jacks are either hollow or solid with deep threads. Easy adjustments can be made with the universal jacks special spindles.

SOCKET ADAPTER
CODE SIZE (m) WEIGHT (kg) DIMENSIONS(kg)
CSFSA07 0.75M Hollow 2.96

  Top



Socket Adapter

Universal Jack
